As usual, it has been quite a while since I’ve posted anything to the site, but I figured since I spent some time learning about Software Defined Radios (now that I finally got a bit of down time from work) that I’d share what I learned.  One caveat, I did have a purpose in learning more about SDRs and that was to be able to listen to and record all the Chicago Police and Fire dispatch radio traffic on the old analog radio system.  After a bit of trial and error and testing a few of the hardware and software options I settled on a working configuration that I’ll share in the video series below.

Background

SDRs are hardware devices, controlled by software and the configuration of that software, that allow us to use the radio hardware to tune to and receive radio transmissions, and in some case transmit radio as well, within the spectrum covered by the hardware device.  These devices range from $25 on the low end to $1,000’s on the upper end, and in this post I’ll mainly focus on the lower end devices (RTL-SDR and Nooelec SMART NESDRs).  The links to the hardware, software, and other sites mentioned in the video series are posted below for reference.

Objectives

The objective, as mentioned above, was to be able to receive and record radio transmissions.  These transmissions happen to be in the 460 MHz range (from 460.025 to 460.525 MHz) as Chicago is still using an old analog radio system for dispatch (yes, SWAT and other have moved to a digital encrypted system already).  The issue I ran into was there is a lot of information on how to setup and configure a digital, or digitally trunked system, but not a lot on how to setup the hardware and software for older analog radio systems.  Turns out, it is not that difficult…

The Videos

I figured this post was better suited for a series of videos that cover the basics of the radio spectrum through the installation and configuration of hardware and software to meet my objectives.  Starting with the basics, Video 1 below covers:

• The basics of the radio spectrum in the US
• An overview of my use case and objectives
• Sites that can be used to lookup radio frequencies
• Hardware options (handheld scanners) and types of radio systems (analog, digital, and trunked)

In Video 2, I’ll cover:

• SDR Hardware options (limiting to $350 and under)
• Software options
• The hardware and software I chose for my use case
• Where can I stream these transmissions? OpenMhz!

Video 3 gets us started on the build, and covers:

• Connecting our SDRs to Windows and Linux
• Using SDR#
• Installing rtl_eeprom, docker, and getting trunk-recorder to a working state

Finally, in Video 4, we work on:

• Determining your error correction or PPM using GQRX
• Configuring trunk-recorder (config.json and talkgroup files)
• Determining a center frequency for our use case (analog 460 Mhz transmissions)
• Pushing our recordings to OpenMHz and listening locally

And one final bonus video that shows the quick and dirty way to get trunk-recorder working using a pull from Docker Hub of the latest robotastic/trunk-recorder docker.  In this we will use docker -run and map some volumes and devices between our OS and the Docker container and get up and running quickly.

Finally, here are the links:

• https://www.rtl-sdr.com/
• https://www.nooelec.com/store/
• https://airspy.com/
• https://shop.hak5.org/collections/featured-makers/products/hackrf
• https://www.andrewmohawk.com/2020/06/12/trunked-radio-a-guide/
• https://github.com/robotastic/trunk-recorder
• https://github.com/AndrewMohawk/trunkrecorder-helpers
• https://www.radioreference.com/
• https://openmhz.com/

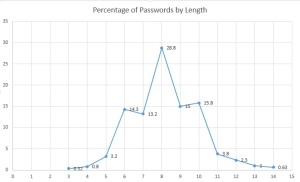

Seeing all the “your 8-character passwords are dead!” posts and articles gave me a good laugh as that’s already been the case.  We have been down to reasonable offline cracking times even with modest hardware investments for a while now.  There are also several caveats to saying that an 8-character password is dead, but I’ll get to that later in the post.  For those wondering, most all of these posts were spurred by a recent announcement by hashcat that a tuned version of 6.0 had achieved 100GH/s NTLM speeds using a single Nvidia GeForce RTX 2080Ti (https://twitter.com/hashcat/status/1095807014079512579).  Some news sources keep saying “8 cards” but that’s not the case as they show only a single card in the 100GH/s benchmark.  Besides, my meager 6 x GTX 1060 cracking rig at home already achieves 120GH/s for NTLM and given the advancements in GPU technology I’m not surprised by the benchmark speeds of the RTX 2080Ti.

But let’s take a step back for a second and detail how that 8-character NTLM password hash was already crackable prior to this new hashcat benchmark and GPU release from Nvidia.  Our goal in the following example is to see how long it takes to offline brute-force an 8-character NTLM hash.  We’ll assume you have a set of different budgets just to give a sense of the spend required to achieve certain cracking times:

• Scenario 1 – We have old hardware laying around that we purchased long ago – I’m using this as an example to show how rapidly the cracking times have dropped – so let’s say this is a single GTX 960 card capable of 10GH/s speeds on NTLM hashes (circa 2015).
• Scenario 2 – You have a budget of ~$3,500 with which you could easily buy a smaller GPU cracking rig that has 6 GTX 1060 cards on which to run hashcat and you’d get to 120GH/s speeds on NTLM hashes.
• Scenario 3 – You have a budget that is double, or ~$7,000, which would get you 8 GTX 1080 cards and speeds of 350GH/s on NTLM hashes.
• Scenario 4 – You don’t want to buy hardware, so find that the p3.16xlarge EC2 instance on Amazon AWS fits your needs as it has 8 Nvidia Tesla V100 GPUs available for $25/hr. and is able to reach 633GH/s NTLM speeds.
• Scenario 5 – You have a budget of ~$12,000 in which nets you 8 RTX 2080Ti cards and speeds of 800GH/s for NTLM hashes.

Next, we need to look at total keyspace of our password.  Ignoring that many people choose repeatable or known patterns when selecting and updating or changing their passwords (see: http://www.malos-ojos.com/?p=771), and assuming that we need to brute-force the entire keyspace (we’re really unlucky and only match on the last and final combination), we can calculate maximum cracking time for any 8-character password based on the time it takes (at our guessing rate) to exhaust the keyspace.  Assuming there are 95 possible characters (upper alpha, lower alpha, numeric, special characters, etc. – the “ascii-32-95” set) and a password length of 8, we have:

• A keyspace of 95^8, or 6,634,204,312,890,625 possible combinations.

Those who started in security when we used CPUs to crack would recognize that keyspace as an almost insurmountable task and we’d be discussing how many “2 to the power of something” years it would take to crack.  Also, while I gave up on rainbow table years ago, writing this made me question if anyone has even bothered to generate NTLM 8-character “ascii-32-95” tables (the 8 char NTLM mixed-alpha + numeric tables are ~127GB) as I have never seen them, publicly traded at least.

 But I digress, so let’s see how our scenarios above play out and determine maximum cracking time:

• Scenario 1 – 663420 seconds = 11057 minutes = 184 hours = 7 days 16 hours
• Scenario 2 – 55,285 seconds = 921 minutes = 15 hours 24 minutes
• Scenario 3 – 18,954 seconds = 315 minutes = 5 hours 15 minutes
• Scenario 4 – 10,480 seconds = 174 minutes = 2 hours 54 minutes
• Scenario 5 – 8,292 seconds = 138 minutes = 2 hours 18 minutes

From these results we see that even with a limited budget of ~$3,500 that we need less than a day to crack a hash (remember, that is a maximum length) that previously, using CPUs, would take years.  If we assume on average that we need to exhaust 50% of the keyspace before a match then these times drop by half, meaning we should be cracking hashes in ~7.5 hours on that same $3,500 system.

What I find interesting about Scenario 4 is that although you have no upfront hardware costs you quickly exhaust your funds if you have a large number of hashes to crack.  As an example, if you cracked 160 NTLM hashes, again assuming worst case scenario where we need to exhaust our keyspace, we would have hit the $12,000 mark in fees and could have simply purchased our own hardware for the job.  Speaking of costs – one interesting thing to note is the cost per GH/s of cracking speed as it goes down the higher your budget.  At $3,500 you’re paying $30 per GH/s and at $12,000 you’re paying half, at $15 per GH/s.  Seems counterintuitive, but the more you spend the less it costs per unit of GH/s.

Finally, as I was reading the articles, news reports, and tweets about this topic I noticed a few mis-conceptions or discussion points that have popped up that I’d like to address here:

• Why all the buzz around password lengths of 8 characters and where did that recommendation come from?

It comes from a variety of sources, one of which is NIST guidance.  And while there are sites and services that allow you to use less than 8 (see this: https://www.troyhunt.com/how-long-is-long-enough-minimum-password-lengths-by-the-worlds-top-sites/), most corporate environments will default to the recommended minimum length of 8 in their password policies.  However, that guidance may have been (read: is) based on dated information, thinking back to CPU-based cracking and much slower rates, which meant that an offline attack against an NTLM hash would not be successful and because we have maximum password ages and rotation requirements it isn’t an issue…but it is, and has been for some time.  Even PCI requirement 8.2.3 states a requirement for a minimum 7-character password length, which significantly reduces the keyspace we have to cover in brute-force attacks.

• But my company requires me to rotate my password every 30/60/90/X days, so we should be good, right?

Not really, if the numbers above hold and I can break your NTLM hash in under 3 hours, unless I’m very unlucky and the time between obtaining the hashes and cracking them offline plus the 3 hours of cracking times coincides with the same day you either manually rotate your password (unlikely) or are forced to by the system (more likely) then I have access for at least 1 to as many days in your maximum password age policy.  If my goal is to log in as you and download your mailbox as an offline .pst then I’ll probably be successful.

• What about password complexity – doesn’t that help?

Not really, but sort of.  In my scenarios and brute-forcing time calculations above I accounted for all 95 characters, which would include your special character requirement.  Not to mention, you likely have a password that conforms to a well-known standard (see: http://www.malos-ojos.com/?p=771), which means I can use rules and wordlists to more effectively crack the hash and could more effectively attack your hash.  In fact, if you kept the 8-character length requirement but ditched the complexity requirement (assume mixed-alpha numeric only) I could crack your password (in the best case above) in 4.5 minutes as opposed to 2 hours and 15 minutes).  So yes, I say sort of as it increases the keyspace and increases brute-force time – but also not really considering your special characters either start or end your password which is a pronounceable root word or words.

• Why the focus on NTLM hashes?  Does the hash type matter?

Hash type absolutely matters – ask an old security professional about LM hashing and they will regale you with stories of the olden days and rainbow tables and domain admin access every time.  If you look at NTLM, which is an MD4 hash of the plaintext password, it is a very fast algorithm.  Meaning it is fast to calculate and makes it more susceptible to brute-forcing as you’re allowing me to test more (higher rates) plaintext inputs to match the MD4 hash output.  I also focus on NTLM (-m 1000 for the hashcat crowd) as that is the default storage mechanism in Microsoft Active Directory.

That being said, NTLM isn’t the only hash type out there…and no, we don’t need MD4 to be as fast as it is for password storage or authentication.  Which brings us to other ways in which we can store based on passphrase-based key derivation functions such as PBKDF2 (https://en.wikipedia.org/wiki/PBKDF2) which isn’t very GPU resistant but obviously better that MD4, and algorithms such as bcrypt, scrypt, and now Argon2 (https://en.wikipedia.org/wiki/Argon2).  As an example of the slow down in brute-forcing, a single GTX 1060 can do 19 billion MD4 calculations per section versus only 240,000 per second for scrypt.

• Does this mean you can use these GPU cracking rigs against websites?

No, and that’s the difference between online and offline attacks.  What I’m covering here are offline attacks, meaning the attacker has the hash in their possession and can attempt to recover the password/crack the hash on their own system.  This usually occurs if the organization has been breached, someone has gained admin access to a system or the domain, and has “dumped” the password hashes (or captured them in transit across the network).  Online attacks would require a different toolset and would operate at much slower speeds/rates.

But this brings me to a different point, as we gain cracking rate speed it also means those password hashes dumped on the internet become even more susceptible to cracking, depending as stated above on the hashing algorithm used.  Then again, we already know the general format of the password and that many web services allow 6-7 character non-complex passwords, and while many have obviously fallen because of this I’m speaking of the more complex passwords that have not, until now.

• Anything you haven’t covered?

A lot, and I mean A LOT!  We haven’t even touched FPGA and ASICS here, precomputation, side channel attacks, and a whole lot of other stuff related to password storage, hashing, and cracking…and I stuck with unsalted password hash storage versus network authentication algorithms for simplicity.

Somewhat off the infosec path, but I recently found a need to break into a GE Concord 4 home security system recently – yes, the commercial/home alarm system with door, glass break, and motion sensors that calls the company monitoring your system when the alarm is tripped.  While my home alarm system has since been replaced with a newer model, the GE Concord 4 system was installed when I purchased my home, and I thought a consolidated set if instructions and details may help someone who also needs this information.  My main goal was to gain access to mess around with this system and at some point sell it to someone who needs a replacement board.  To be honest, the Concord 4 is overkill for single family homes as it supports 96 zones total (wired plus RF – comes with 8 zones on the standard board), 6 partitions, and 230 user codes…more than anyone could possibly need.

One thing you’ll notice when home security systems are installed is that the original installer, or the dealer, sets the install codes on your system.  You’ll need these codes should you need to change system-wide settings such as the central station (CS) number (the phone number your alarm system calls when tripped) and the system ID that let’s the monitoring center know which system is calling with an alarm.  These aren’t the same as user codes or the master code – which are used to arm and disarm the system on a daily basis – but the codes required to really program the system.   If you’re lucky enough to have a new system installed while you’re around always ask for the installer codes and store them some place safe.  One other caveat, as you’ll see below, is that not all alarm keypads can program a system and that applies to the Concord 4 as well.

The Basics:

• The system we are dealing with is a GE Concord 4 – GE Home Security was purchased by Interlogix – previously there was a Concord 3 and Concord Express, and while there isn’t much difference in these models I can’t guarantee these instructions will work for other models.
• You’ll also need a keypad that is capable of programming the Concord 4.  I was lucky in that I have the keypad models (SuperBus 2000 2×16 LCD) that can program this board.  In some cases, installers may only install touchpad models that can’t program the board throughout your house, and in that case you’ll also need to head over to eBay and find a new touchpad as well.  As an alternative, and if you’re simply attempting to switching monitoring companies, the installer may have one of the required programming keypads.  Although you’ll need the installer codes (which is the point of this post) to gain access to reprogram the system.
• You’re also going to need a copy of the installer manual – not the user manual you get that describes daily operation of the system – the installer manual can be found here

The eeprom:

These boards have a removable eeprom that holds the codes and settings for the board.  To get the installer codes you have a few options.  You could:

1. Attempt to use the default codes – usual suspects here are 4321 (default), 1234, 1111, 4112, 6321 (that’s one ADT was known to use), and 0602 (SCM monitoring used this as a default)
2. Buy a new board with an eeprom configured with a default installer code (4321), or a known installer code (verify with the seller)
3. Use the methods below to read the installer codes from the eeprom and then reconfigure your board – this post assumes you’re going with option 3…

Finding and removing the eeprom:

The board and eeprom (show in the pictures below) is where we’ll start.  The eeprom on the Concord 4 should be a Microchip 24LC256

‘

Power the system down by removing the AC connection from the wall (or remove the power leads from the screw terminals on the leftmost side of the board, GND and Positive for the 16.5V AC transformer), and then remove the power leads from the battery or board (red and black connection in the picture below) to remove battery backup power to the board.  Use a chip puller to extract the eeprom from the socket, being careful not to bend any pins.  Note the orientation of the chip, with the notch towards the “top” of the board and away from the screw terminals used to connect sensors, power, and other items to the board.  You’ll replace it in that same orientation prior to reconnecting power.

Reading the eeprom:

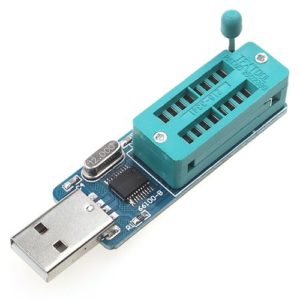

To read the eeprom you’re going to need an eeprom reader.  I used this one – from Amazon, ~$10 –  (see image below)

The issue you’ll find with this reader is that it does NOT come with any software and only works with Windows 7 as the operating system. Luckily I had an older laptop that I could use for this task, if you don’t you could try a Windows 7 VM but I’m not sure the USB translation between host and guest will work for our needs here.  Assuming you have this device and a Windows 7 system, here are the steps to get the reader software working:

1. Download the USB device driver and eeprom reader/writer software
2. Unzip into a directory of your choosing – create a new folder in the directory called Languages and move the english.ini file into the Languages folder
3. Plug in the eeprom reader – without the eeprom chip inserted – cancel the autodriver install
4. Run the driver-24cxx25xx.exe driver installer, choose install, and your system should now recognize the eeprom reader
5. Run the eeprom software with the USB reader/writer inserted (again, without the eeprom from the board inserted) – it is called CH341A.exe
6. In the lower left corner of the application window it should say “connected”

Now it is time to take the eerpom from our board and insert it into the USB reader/writer.  This is the most confusing part as the diagram in the application, as well as other reader/writer tutorials show various orientation of the chip.  What DOES work with the reader is putting the the notch (or dot) of the eeprom in the socket closest to the USB connection and with the notch facing the USB connection.  If you reverse this you’ll burn up the eeprom chip – or your fingers.  If you use the socket furthest away from the USB connection the chip can’t be read.

Unplug the USB reader/writer from your system, using the correct orientation place the chip in the socket and move the lever at the end opposite the USB connection down to make contact with the 8 eeprom pins.  With the CH341A application running, plug the USB reader/writer back into your system.  Once it shows as connected, make sure you choose 24 eeprom as the type, Microchip as the manufacturer, and MI24LC256 as the name.  Hit the READ button – not erase, program, or anything else as we are not modifying the contents of the eeprom, only reading the values we need.  If your output is all FF’s you’ve done something wrong as those are null hex values.  If you see different hex values (besides FF’s) as you scroll the output then you’ve likely read the chip correctly.

The values we need are in the following locations:

• Main code – used to arm/disarm the system is at 0x03E2-3 (in my shot below it was reset to 9999)
• Installer code – what we are after, is at 0x03E5-6 (in my case it was set to 0602 by the installer)

Resetting the installer code/or programming the system:

With the installer code in hand, we can use our keypad to enter SYSTEM PROGRAMMING.  You’ll need to reinsert the eeprom (notch up), reapply the battery power and reconnect AC power to the board.  After system power up, you will do the following:

On the keypad, enter 8 + installer code (0602 in my example) and then 0 + 0 – the keypad should say SYSTEM PROGRAMMING (see below)

If you get a quick two-beeps and a return to the time/date screen then either your installer code is not correct, or your keypad is not capable of programming the system (see above).  Assuming you made it this far, you can either continue using the known installer code, or reset it.  Use the installer manual, starting at page 33, the instructions are pretty clear – under System -> Security we can view and change the installer codes as necessary.  Reminder, the default on these boards is 4321 for the installer and a blank dealer code.

Hope that helps!  Please note – I’m not actively monitoring this post for questions or comments.



This post will walk you through getting Kali 2.0 installed on a Raspberry Pi 2 Model B.  I’ve chosen the latest version of the Pi due to the fact that it has an quad-core 900MHz ARM Cortex-A7 processor and 1Gb of memory in addition to the 4 on-board USB ports, HDMI, and wired Ethernet all in the same form-factor as the previous models.  Being new to a Linux distro is one thing, fighting through dependencies and learning how to navigate and operate the system, and throwing a new hardware platform on top may be a barrier to entry for some.  While these videos do not show you everything they do get you to a working Kali 2.0 image with remote access.  The motivation for this was to encourage more people to try going this route in this quarter’s run of CNS388/488 at DePaul.  The videos below are broken into different parts as opposed to one long video to allow you to jump to the video instructions that you need.

Before you start you’re obviously going to need some hardware.  At a minimum you should have (for reference I listed the products I’m using by link at the end of the post):

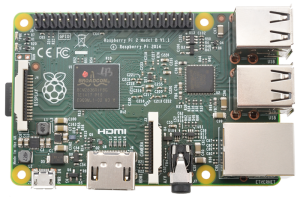

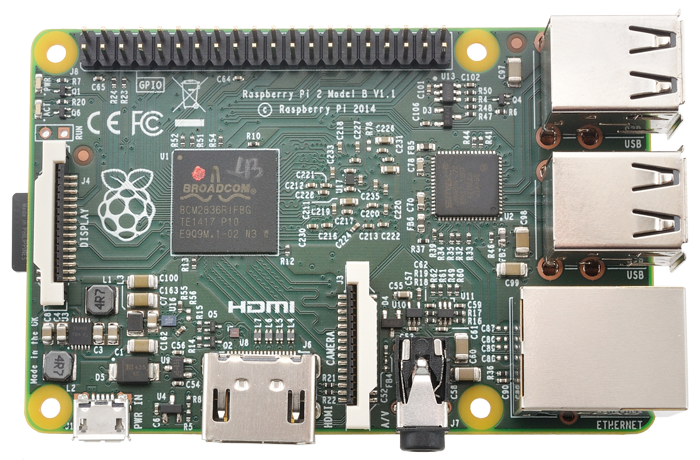

1. A Raspberry Pi 2 Model B – Generally around $30-40 for the bare card (I found a $30 deal at Micro Center this past week for the Pi 2 Model B)
2. A Case – Unless you are protecting the board in some other way
3. A MicroSD card – Look for Class 10 cards and quality manufacturers if you plan to actually use this build for testing
4. MicroSD adapters – Sometimes these come with the cards, but I’ll leave it up to you to find the adapter you need as many of us have these laying around from various digital cameras and such
5. A USB-to-flash memory adapter – This isn’t necessary, but helpful if you’re using VMWare and another Linux image to expand the partitions
6. HDMI-DVI or HDMI-VGA adapter – Only needed if you want to actually see the output from the Pi and do not have an HDMI input on your monitor
7. A wireless keyboard/mouse combo – Again, only needed if you want to interact with the Pi using a monitor



Video 1 – Getting Kali 2.0 flashed on to your MicroSD card

In this video I’ll show you where to get the Kali image from and how to flash it to your SD card.  I realize there are many SD flashing programs out there, but I haven’t found one that is as fast as PiFiller for OSX.  If you’re using Windows you can search for Win32 Disk Imager and use that, or any other tool capable of flashing the .img file on to the SD card.



Video 2 – Expanding the partitions using gparted

This video expands the root partition of our newly flashed card so that we can install additional Kali tools and meta packages as well as store captured data or files



Video 3 – Installing Kali meta packages and getting SSH & VNC working

In this video we will install Kali meta packages to add additional tools and features to our Kali Pi image.  You should note that, depending on your internet speeds, selecting the kali-linux-all package as I have in this video may take a few hours to complete.  At the end we will SSH into the image and get a VNC connection established so we can interact with the Kali desktop as well as ditch the external monitor if we choose.



Video 4 – Tunneling our VNC connection through SSH

This video adds some security to our remote connection by tunneling our VNC connection through SSH.  This is helpful to both limit the open/listening ports on our Kali image as well as tunnel all VNC traffic through an encrypted SSH tunnel.  Note that I’m using a Kali 1.1.0c VM image running on VMWare Fusion as my remote host in most of the videos.  The process is different if you use VNCViewer and/or Putty from a Windows system.



Video 5 – Changing SSH from password to public key based authentication

In the final video of this series we change the default SSH keys that were shipped with the Kali 2.0 ARM image as well as generate our our RSA keys to be used for SSH authentication.  Finally, we turn off password based auth to SSH so only public key authentication is allowed.

Hope you find these helpful!

My equipment list/links:

• Raspberry Pi 2
• MicroSD Card
• USB-to-Flash Adapter
• HDMI-to-DVI Cable
• Wireless Keyboard/Mouse Combo



Normally I’d be posting something related to the Sony hack and why it doesn’t really matter that is was or was not DPRK and asking why everyone is so focused on the destructive malware versus the fact that Sony made many mistakes in the years prior that ultimately led to what we are witnessing in the media today, but I digress…

I’ve been doing this teaching thing for quite some time, 7 and a half years to be exact, and recently went back in time and added up all of the students that have had a course with me…which totals out to just over 800 as of last quarter.  I started thinking about not only how I got here but also how my advice and teaching style has changed over these years.  In thinking back, the one question that inevitably comes up every quarter in class is “what does it take to be successful in this field?” to which my answers are always almost the same.  I’m not basing my answer to this question solely on what I did or how I got to where I am, my answer is based on a combination my own experiences along with traits I’ve observed from others that I’ve worked with throughout my career who I consider to be great security folks in general.  I also think there are traits that need to be shed by some folks in our field as well, which I’m also happy to convey to those who ask.

So why am I writing this post?  Well, when I first started teaching I attempted to cater to everyone in the class and tried not to offend anyone.  Perhaps with age, and after many years of trying to make every student happy, I realized I was doing the students a disservice.  I wasn’t exactly treating them in a way that would clue them in on the general expectations of those in our field or in a way that would force them to learn traits that would make them successful.  However, and NOT to my surprise, I noted some students just don’t like this new method.  Some students just don’t like to be told that they are going to have to work hard, some just don’t like the fact that they may have to research something on their own, and some worry more about the grade than what they take away from the course that they can apply in their current roles or in the future.  At the end of every quarter the school asks (used to be mandatory) students to provide course evaluations back to the instructor along with comments on strengths, weaknesses, what they liked, didn’t like and so on.  And every quarter I’m both thrilled and dismayed after reading the comments.  Of course some people really enjoyed the course, some disliked it, and I expect that…but some disliked it for reasons you wouldn’t think.  And what is most dismaying is that some of these reasons fly directly in the face of what I think it takes to be successful in our field…and that worries me.

So what does it take?  For me I boiled it down to three main required traits: curiosity, perseverance, being able to learn new things on your own.

Let me start with curiosity – inquisitiveness, interest, and imagination…all synonyms of curiosity.  If you don’t find yourself asking “how or why does this work?” very often then you’re probably not curious by nature.   Curious people are fascinated by things that generally leads to a burning desire to know why and how things in this world work.  Curious people have been known to take things apart (sorry mom) and sort of put them back together.  Curious people like to build things as well, because starting with the pieces helps them to understand how it works, then they are likely to take what they just built apart and try to make it better.  I pair imaginative with this trait as curious people tend to find themselves thinking of new ways of doing things or finding unique solutions to problems.  We often find ourselves needing to ask how something works, or coming up with new or novel solutions in our field…so I put curiosity as one of my top 3.

The second is perseverance.  I feel this is a strong trait of people I see as being successful across many different fields, but also feel it is critical to carry this trait if your field is information security.  It is easy to get frustrated in our field just based on the breadth of knowledge it requires.  I don’t mean to say you need to know everything, but as my career progressed I found myself leaning on knowledge that wasn’t directly related to security that allowed me to see the bigger picture of things and how what I was doing was going to affect things that I previously wasn’t thinking of.  We also need perseverance as we are often beat down and blamed for “IT not working like it should because of security” or being the “team that says no all the time”.  I’m not advocating that you take a strong stance each and every time someone challenges you (being stubborn is not the same as perseverance), you need to pick your battles, and when you do you will need to stand your ground.  This trait leads me to the last one…where perseverance is required to not give up on something just because it is hard.

Learn how you learn, so that you can teach yourself new things in the future.  When I was an undergrad I hadn’t yet learned how I learn best, or better yet, how to teach myself.  By the time I was a grad student I had figured it out and learning, and courses in general, became much easier and fun which allowed me to focus on how to apply my newly gained knowledge to both past and future problems I would encounter.  I find myself learning all the time just to stay current, so if you’re going to stay current in our field then expect to become a lifelong learner.  Yes, I know this also applies to other fields as well, but I feel it is critical in our field given the pace of change.  I used to think this was a “young” student’s problem or a generational issue, but over time I found that to be a misconception on my part.  This seems to affect all generations equally based on my observations.  My advice is generally pretty simple, if you’re not curious or inquisitive and you can’t stick it out through perseverance it is unlikely that you’ll find yourself being a lifelong learner.  One thing that I get in the evaluations each and every quarter since I’ve changed my style is that “I can’t believe you said that we should use Google to answer our own questions”…which blows my mind.  When I started in this field I had Hacking Exposed and IRC…today’s new students of the field have Google, 100’s of published and unpublished security books, and way more educational resources than ever before.  So why not use them to your advantage?  Why is being asked to learn something on your own such a bad thing?

To conclude, I realize there are other traits that are required in order to be successful, but I feel that without the three I boiled it down to that the others don’t matter.  Finally, I realize that some people who aren’t strong in these three traits will still stay in the field and be satisfied with putting years into the field only to push buttons every day.  Which reminds me, I was watching Caddyshack the other day and there’s a line where Ty tells Danny that “the world needs ditch digger too”…relating that to this post I always make it “the world needs firewall admins too” in my mind.

Asset management is a foundational IT service that many organizations continue to struggle to provide.  Worse yet, and from the security perspective, this affects all of the secondary and tertiary services that rely on this foundation such as vulnerability management, security monitoring, analysis, and response to name a few.  While it is very rare that an organization has an up-to-date or accurate picture of all of their IT assets, it is even rarer (think rainbow-colored unicorn that pukes Skittles) that an organization has an accurate picture of the criticality of their assets.  While some do a decent job when standing up a CMDB of mapping applications to supporting infrastructure and ranking their criticality (although many tend to use a binary critical/not critical ranking), these criticality rankings are statically assigned and if not updated over time may turn stale.  Manual re-evaluation of assets and applications in a CMDB is a time-consuming task that many organizations, after the pain of setting up the CMDB in the first iteration, are not willing or likely to make re-certification of assets and criticality rakings a priority…and it is easy to understand why.  My other issue is that many CMDBs sometimes take into account the “availability” factor of an asset over the criticality of the assets from a security perspective.  For example, it is not uncommon to see a rigorous change management process for assets in the CMDB with a slightly less rigorous (or non-existent) change management process for non-CMDB assets.  But I digress…to summarize my problem:

• Asset criticality often does not exist or is assigned upon the asset’s entry into a central tracking mechanism or CMDB
• The effort to manually determine and recertify asset criticality is often so great that manual processes fail or produce inaccurate data
• In order for asset criticality data to be useful we may need near real time views of the criticality that change in concert with the asset’s usage
• Without accurate asset inventories and criticalities we cannot accurately represent overall risk or risk posture of an organization

The impact of inaccurate asset inventories and lack of up-to-date criticality rankings got me thinking that there has to be a better way.  Being that I spend a majority of my time in the security monitoring space, and now what seems to be threat intel and security/data analytics space, I kept thinking of possible solutions.  The one factor I found to be in common with every possible solution was data.  And why not?  We used to talk about the problems of “too much data” and how we were drowning in it…so why not use it to infer the critically of assets and to update their critically in an automated fashion.  Basically, make the data work for us for a change.

To start I looked for existing solutions but couldn’t find one.  Yes, some vendors have pieces of what I was looking for (i.e. identity analytics), but no one vendor had a solution that fit my needs.  In general, my thought process was:

1. We may be starting with a statically defined criticality rating for certain assets and applications (i.e. CMDB), and I’m fine with that as a starting point
2. I need a way to gather and process data that would support, or reject, the statically assigned ratings
3. I also need a way to assign ratings to assets outside of what has been statically assigned (i.e. critical assets not included in CMDB)
4. The rating system shouldn’t be binary (yes/no) but more flexible and take into account real-world factors such as the type/sensitivity of the data stored or processed, usage, and network accessibility factors
5. Assets criticalities could be inferred and updated on a periodic (i.e. monthly) or real-time basis through data collection and processing
6. The side-benefit of all of this would also include a more accurate asset inventory and picture that could be used to support everything from IT BAU processes (i.e. license management) and security initiatives (i.e. VM, security monitoring, response, etc.)

These 6 thoughts guided the drafting of a research paper, posted here (http://www.malos-ojos.com/wp-content/uploads/2014/08/DGRZETICH-Ideas-on-Asset-Criticality-Inference.pdf), that I’ve been ever so slowly working on.  Keep in mind that the paper is a draft and still a work in progress and attempts to start to solve the problem using data and the idea that we should be able to infer the criticality of an asset based on models and data analytics.  I’ve been thinking about this for a while now (the paper was dated 6/26/2013) and even last year attempted to gather a sample data set and to work with the M.S. students from DePaul in the Predicative Analytics concentration to solve but that never came to fruition.  Maybe this year…

I realized that I was spending an inordinate amount of time when rebuilding Cuckoo Sandbox (http://cuckoosandbox.org) in my home lab just because I was starting from a fresh Ubuntu install which does not ship with all of the dependencies and packages that are required by Cuckoo. I also break this system quite often and in such specular ways that the only recovery mechanism is to rebuild the system from the OS up. This, unfortunately, also leads back to spending way too much time post-OS install in rebuilding Cuckoo. There has to be a better way…and so there is using a shell script I wrote to get me up and running in no time after a rebuild.

So what do I need to run this script?

The script (located here: cuckoo_install – right-click and save as, rename to .sh) assumes you have a base install of Ubuntu 12.04LTS and that you have updated through an apt-get update and an apt-get dist-upgrade. It was also created to work specifically for Cuckoo Sandbox v1.1.  Beyond that you’re on your own to set networking and the user accounts as you see fit. In my case I use the account created during OS install for everything on this system and I have a physically and logically segmented network just for the sandbox and the virtual machines used to detonate the malware. These systems are directly connected to the internet and sit behind a Cisco ASA which is logging all accepts and denies to a Splunk instance and the connection is tapped using a VSS 12×4 distributed tap and the traffic is captured using the free version of NetWitness Investigator. I’m also running a VM instance of INetSim (http://www.inetsim.org) that supplies DNS, FTP, and other services that may be required by the malware (i.e. through faking a DNS response to point the malware to a system I control).

What happens when I run the script?

Assuming your base Ubuntu system has connectivity to the internet it will proceed to download and install all of the required dependencies and packages required to run Cuckoo Sandbox v1.1 (again, this assumes you’re on 12.04LTS as a base OS). There is a built-in check at the start that will verify your version that will error out if you’re on something other than 12.04LTS. If you think this will work even if you’re not on 12.04LTS you can, at your own risk, comment out this section and force the script to run. The script runs in sections and requires that you hit enter before proceeding to the next section. I put this in so you could review the status of a section (i.e. no errors) before continuing on to the next section of the script. If you find that annoying simply comment out all of the “read” commands in the script and it will run start to end, however it becomes difficult to identify any install errors given the length of the output. Other than that the script will install what is required for Cuckoo, and after running you can address and errors or issues with the installed components to ensure everything is installed correctly.

What do I need to do following the script to get Cuckoo up and running?

This is going to be highly dependent on your individual setup, however you need to get your virtual machines built and/or transferred into VirtualBox and set the snapshots that will be used (plenty of good info on the net on this step such as http://santi-bassett.blogspot.com/2013/01/installing-cuckoo-sandbox-on-virtualbox.html). You also need to add your user account to the virtualbox group, download the malware.py file if you plan on using Volatility, and setup your network for your particular needs.

Can I modify the script and/or what if it doesn’t work?

I’m posting this script as-is. It works for my needs in my lab environment which may not be the same as yours. Feel free to mod it as required, however all I ask is if you make significant improvements to the script that you share it back to the community. I’m not going to actively maintain the script or make modifications in the future as this is a one shot deal (I have a $dayjob that actually pays the bills).

Note: If you’re new to Cuckoo or Ubuntu I’d actually recommend trying a manual install if you have time. I realized I learned quite a lot about the required packages and how the system functions when I struggled to get Cuckoo up and running a few years ago. It makes troubleshooting issues I encounter now much easier.

As part of a course I took last quarter at DePaul University on critical infrastructure security I drew the straw on one of our group labs which required that we write a Snort signature for an attack on the Allen Bradley MicroLogix 1400 series controllers. The attack was written by Matt Luallen of Cybati in September of last year for Metasploit which sets a bit on a data file on the controller which indicates to the controller that there is a major logical fault. This attack stops the running program on the controller and must be manually cleared (either through physical interaction with the controller or by clearing the fault using the RSMicroLogix application).

The results of this research project will likely be published in the future in a more formal fashion, but until then I wanted to post a sneak peek at the report for those who may be interested. Note that I wrote this a few months ago and held off on publishing it as it was being copy edited for publication.  As I assume that process had died I am left with no choice but to publish this work…no sense in holding on to something to could be of value to someone else.

A link to the PDF is here.
